SEIKO supply 30TPD-500TPD capacities ranges of small/medium/large wheat flour milling plants. SEIKO is committed to providing turnkey solutions for wheat flour milling plant processing, from assessment, design, and installation to commissioning and maintenance.
As a professional manufacturer specializing in wheat processing projects, we bring over 70 years of expertise in the design, manufacturing, and installation of wheat flour plants. Our products have been successfully exported to more than 30 countries and regions worldwide. Additionally, we hold prestigious certifications, including CE and ISO 9000:2001, ensuring the highest standards of quality and reliability.
Large Capacity Flour Mill Plant (≥100TPD)
Our large capacity flour mills are designed for high-volume industrial production. These plants feature advanced technology for maximum efficiency, durability, and precision in flour milling. These large-scale mills are perfect for large operations looking to meet high production demands while maintaining consistent flour quality.
100TPD Wheat Flour Mill Plant
120TPD Wheat Flour Mill Plant
150TPD Wheat Flour Mill Plant
260TPD Wheat Flour Mill Plant
300~500TPD Wheat Flour Mill Plant
Medium Capacity Flour Mill Plant (30–100TPD)
Medium capacity flour mills provide the ideal balance between production output and space utilization. These plants are designed to be highly automated, user-friendly, and efficient, making them perfect for businesses that need a scalable solution for moderate flour production volumes.
42TPD Wheat Flour Mill Plant

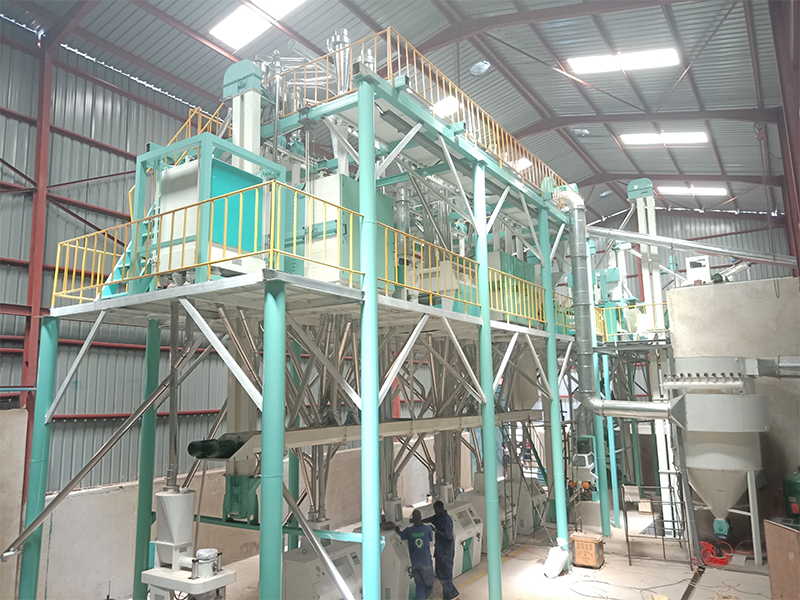

50~60TPD Wheat Flour Mill Plant
60TPD Wheat Flour Mill Plant
80TPD Wheat Flour Mill Plant
Small Capacity Flour Mill Plant (≤30TPD)
Our small capacity flour mills are designed for small businesses, home-based production, or pilot projects. These compact systems are easy to operate, require minimal maintenance, and take up little space. Despite their smaller scale, they are highly automated and produce high-quality flour, making them ideal for entrepreneurs or businesses with limited space and lower production needs.

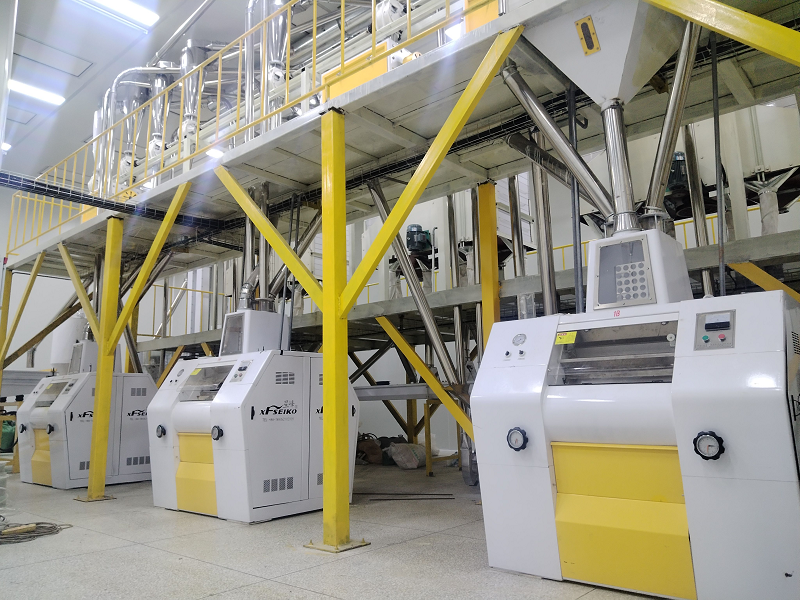

30TPD Wheat Flour Mill Plant
1. Wheat Storage
Silos or Warehouses: The first step in wheat milling is the storage of wheat. After harvesting, wheat is stored in silos or warehouses to ensure it is kept in optimal conditions for milling.
2. Wheat Cleaning
Cleaning System: Wheat grains pass through a variety of cleaning equipment to remove foreign material like stones, dirt, and other impurities. This includes:
Sifters: Separate wheat grains based on size.
De-Stoners: Remove stones or heavier materials from the wheat.
Separators: Sort the wheat grains by size and density.
Magnetic Separators: Remove metal contaminants.
Scourers: Remove dust and loose impurities.
This cleaning ensures the wheat is free from contaminants and ready for the next stage of milling.
3. Tempering or Dampening
Dampening Systems (Dampener, Conditioning Silos): In this step, water is added to the wheat to adjust its moisture content. This makes the wheat easier to grind and enhances the quality of the flour.
The wheat is conditioned and allowed to rest for a specific period to optimize the grinding process and improve flour yield. The grain is made more suitable for milling, ensuring a finer, smoother flour.
4. Milling Process
Milling System: The wheat grains are then ground into flour in a milling system. This involves the use of specialized milling equipment like:
Roller Mills: The most common type of milling equipment, which crushes the wheat into flour.
Plan Sifter: Used to sift the milled flour and separate various grades.
Purifiers: Separate and purify the flour, removing any remaining impurities.
Impact Detacher: Breaks apart larger particles of bran or germ.
During this stage, the wheat kernels are broken down into smaller particles. The process separates the endosperm (starchy part), bran (outer layer), and germ (nutrient-rich part). The endosperm is then ground into flour, while the bran and germ are typically discarded or used in other products.
5. Flour Pressure and Blending (if needed)
In some cases, pressure and blending systems may be used to further refine the flour. This step ensures that the flour meets the desired quality specifications, especially if a specialized type of flour is required (e.g., whole wheat or high-gluten flour).
6. Flour Packing and Stacking
Flour Packing: Once the wheat has been milled into flour, the final product is packed into bags or containers for shipment.
Stacking: After packing, the flour is stacked and prepared for distribution.
Through these steps, wheat is transformed into high-quality flour suitable for baking, cooking, and other culinary applications. This milling process ensures that only the best flour reaches the market, free from contaminants and with optimal texture and taste.
South Korea 100TPD Steel Frame Wheat Flour Mill Plant

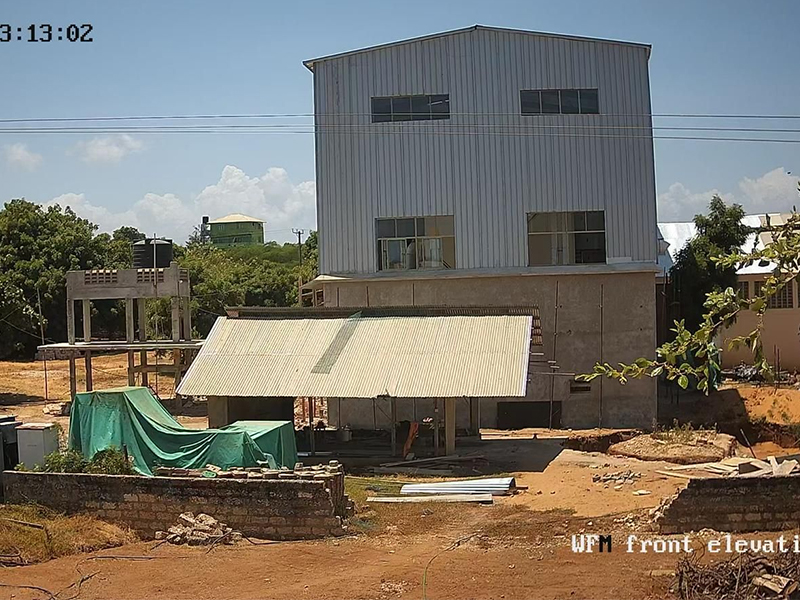

120TPD Steel Structure Wheat Flour Mill Plant

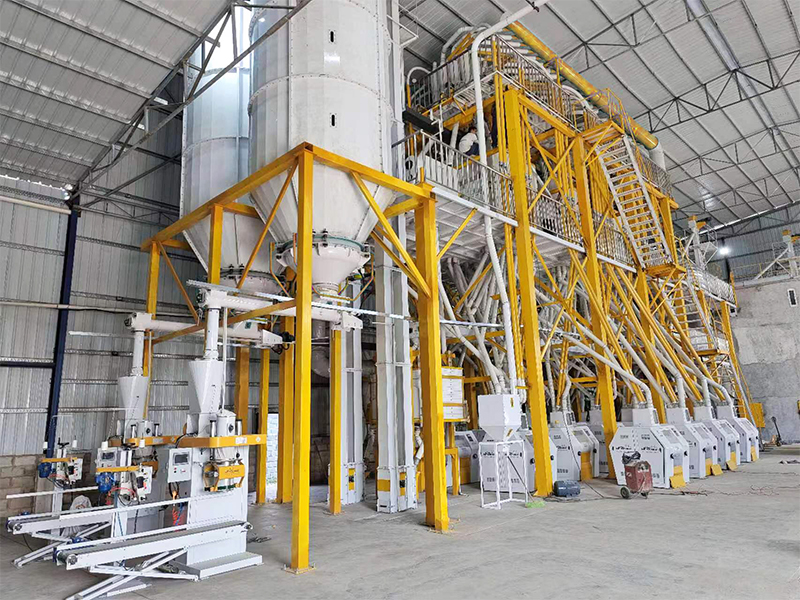

UGANDA 150TPD Multi-Story Building Wheat Mill Plant
SOUTH AMERICA 150TPD Steel Frame Wheat Flour Mill Plant

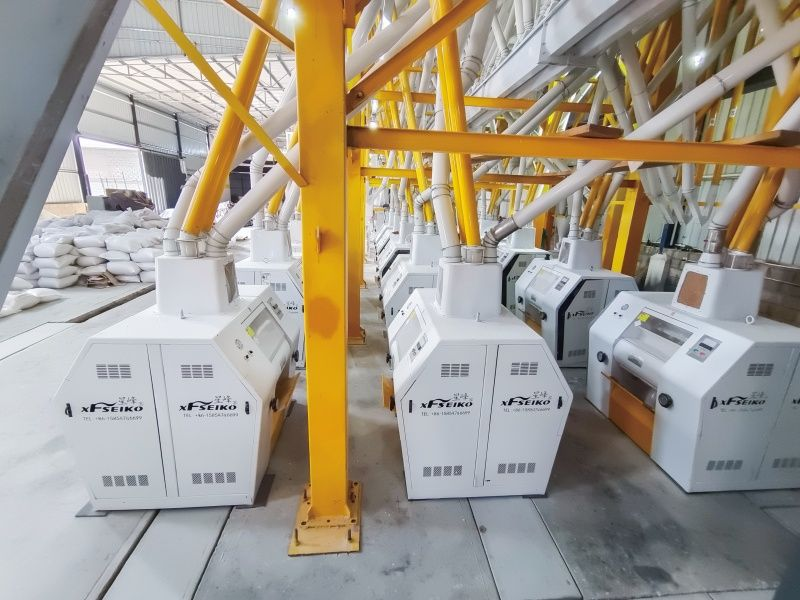

260TPD Steel Structure Wheat Flour Mill Plant
300TPD Concrete Structure Wheat Flour Mill Plant
PERU 30TPD-50TPD Steel Frame Wheat Mill Plant
KENYA 40TPD Steel Frame Wheat Mill Plant
UGANDA 50TPD-60TPD Steel Frame Wheat Mill Plant
MEXCO 60TPD Wheat Flour Mill Plant
ETHIOPIA 80TPD Steel Frame Wheat Mill Plant
CHINA 500T Concrete Structure Wheat Flour Mill Plant
