Knitted polyester filter bag, direct action solenoid valve.
Detail

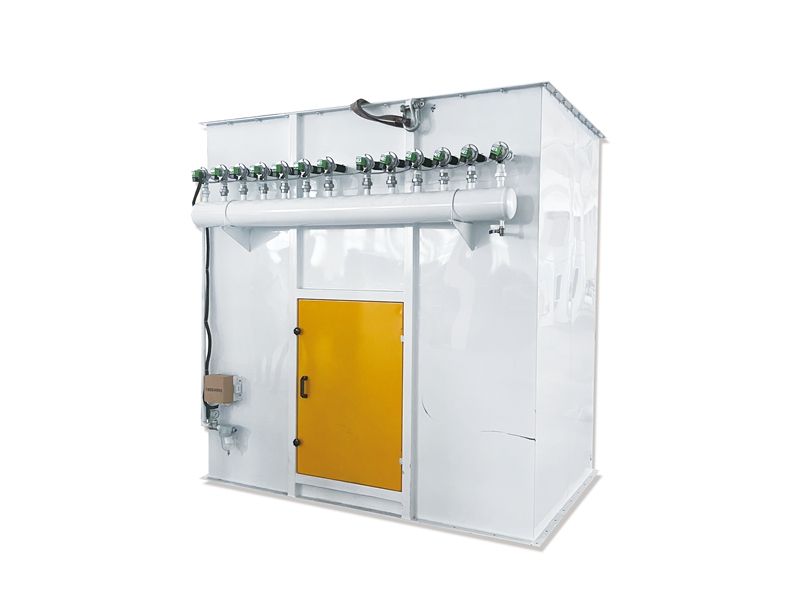

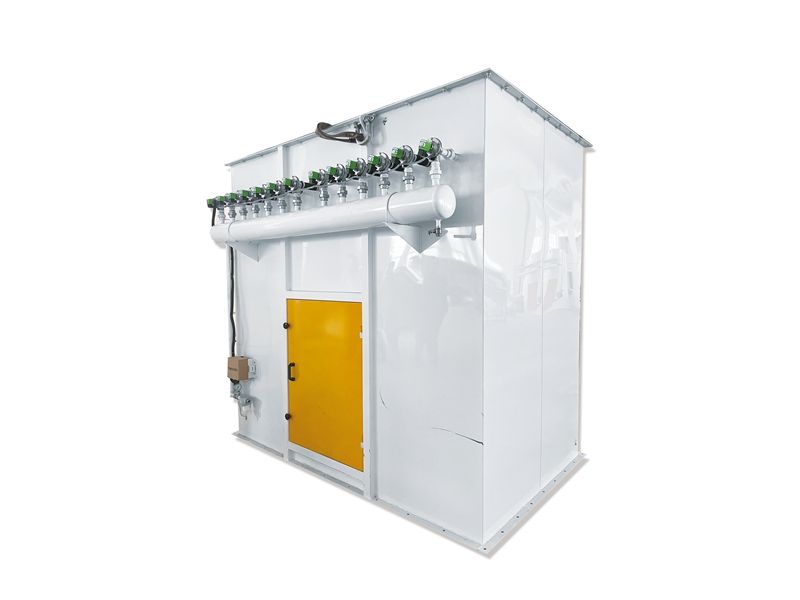

TBLM High-pressure impulse filter adopts advanced technology of direct injection cleaning with electromagnetic pulse valve, which has the characteristics of non-stop maintenance of injection system.
• Knitted polyester filter bag, direct action solenoid valve.
• For large impulse dust filter, there are screw conveyor and air lock under it to reduce height.
• Dust removing rate can be as high as 99.9%.
• Unique jetting device, frame-type detachable filter bag is convenient for maintenance.
| Model | Length of filter bag（mm） | Filtering Area(m²） | Air Volume（m³/h) | Power(kw) | Notes |
| TBLM26 | 1800 | 17 | 1000-5040 | 0.75 | 1. Filtering wind speed 1-4m/min 2. Equipment resistance 80-120mm water column 3. Air leakage rate ≤ 5% 4. Spray pressure 0.04-0.05pm |
| 2000 | 19 | 1120-5600 | |||
| 2400 | 23 | 1350-6750 | |||
| TBLM39 | 1800 | 25.5 | 1500-7500 | 1.1+0.75 | |
| 2000 | 28.5 | 1680-8400 | |||
| 2400 | 34.5 | 2030-10150 | |||
| TBLM52 | 1800 | 35 | 2020-10100 | 1.1+0.75 | |
| 2000 | 38 | 2250-11250 | |||
| 2400 | 46 | 2700-13500 | |||
| TBLM78 | 1800 | 51.5 | 3050-15150 | 1.5+1.1 | |
| 2000 | 57 | 3360-16800 | |||
| 2400 | 69 | 4050-20250 | |||
| TBLM104 | 1800 | 68.5 | 4050-20200 | 1.5+1.5 | |
| 2000 | 76.5 | 4500-22500 | |||
| 2400 | 92 | 5400-27000 | |||
| TBLM130 | 1800 | 88 | 5040-25200 | 2.2+2*1.1 | |
| 2000 | 99 | 5600-28000 | |||
| 2400 | 117.5 | 6700-33000 |
