This equipment makes use of high-quality components to realize reliable operation.
Detail
LCS series weighing and packing machine is designed to put a fixed amount of flour, bran or other powder materials into 1-50kg plastic woven or paper bags.
• This equipment makes use of high-quality components to realize reliable operation.
• The bag packing controller is manufactured by General Measure, while the pneumatic components are supplied by SMC. So, this product is able to serve for a long time with low maintenance requirement.
• Due to the application of double-spiral feeding method, our weighing and packing machine is able to work in a fast, precise and stable way.

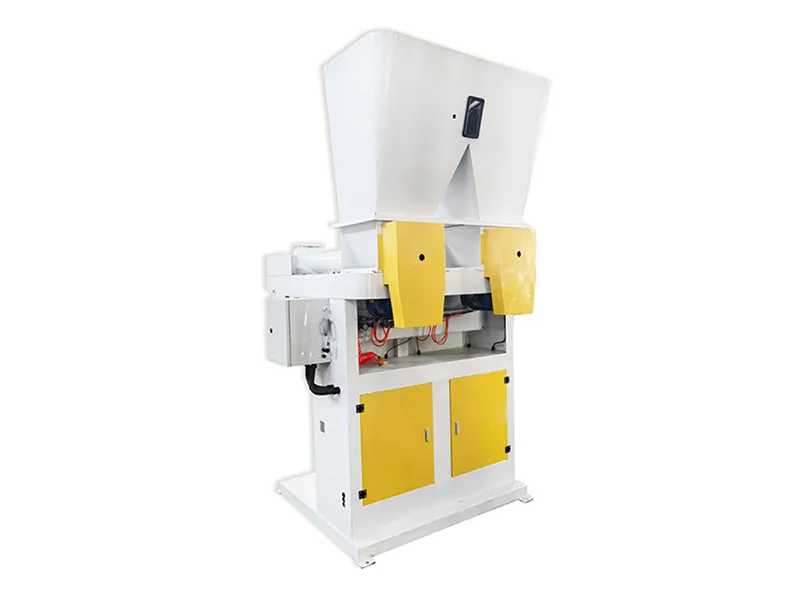

Single station
| Model | Capacity (bags/h) | Power | Range(kg) | Air supply | Dimension(mm)(LXWXH) |
| LCS5 | 300-350 | 2.2 | 1-5 | 0.4-0.6Mpa | 2100*1300*2700mm |
| LCS10 | 260 | 2.2 | 10 | 0.4-0.6Mpa | 2100*1300*2700mm |
| LCS25 | 150-180 | 2.2 | 25-50 | 0.4-0.6Mpa | 2100*1300*2700mm |

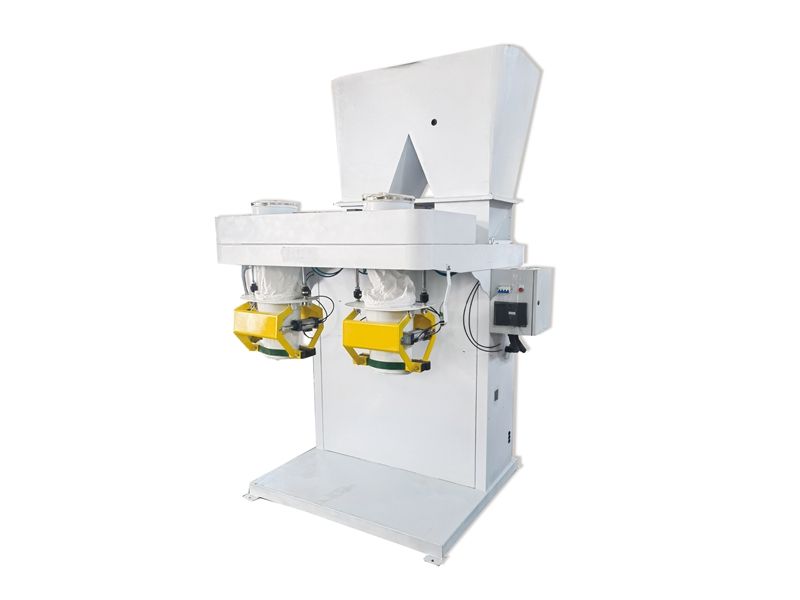

Double station
| Model | Capacity (bags/h) | Power | Range(kg) | Air supply | Dimension(mm)(LXWXH) |
| LCSD5 | 500-600 | 2.2*2 | 1-5 | 0.4-0.6Mpa | 4200*1500*3200 |
| LCSD10 | 500 | 2.2*2 | 10 | 0.4-0.6Mpa | 4200*1500*3200 |
| LCSD25 | 350-480 | 2.2*2 | 25-50 | 0.4-0.6Mpa | 4200*1500*3200 |
