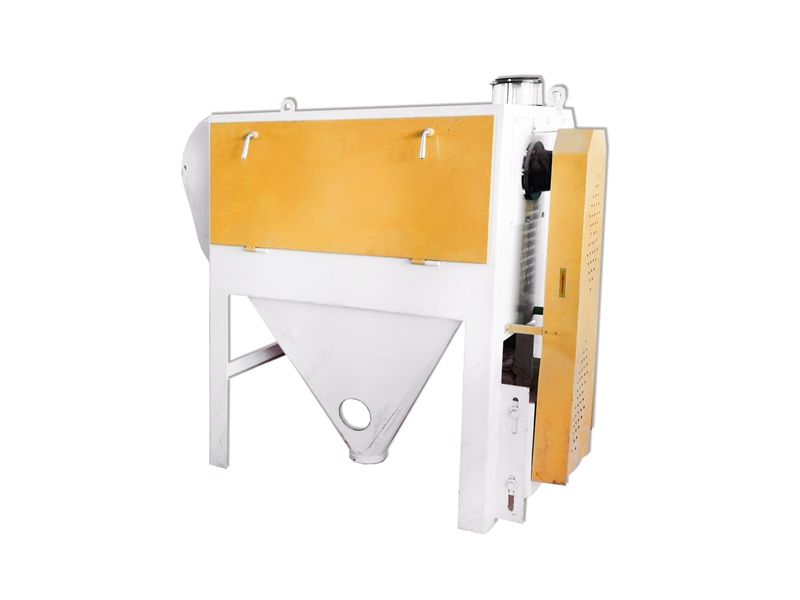

It is used for the loose material before the heart and tail grinding in the grading mill.
Detail
It is used for the loose material before the heart and tail grinding in the grading mill. It can improve the powder yield without affecting the ash content and whiteness of the flour.
| Model | Screening Dia(mm) | Screening tube Length(mm) | Capacity(T/H) | Power(kw) | Weight(kg) | Dimension(mm)(LXWXH) |
| FFPD38 | 380 | 1100 | 3-8 | 5.5-7.5 | 500 | 1650x586x1520 |
| FFPD38x2 | 380 | 1100 | 6-16 | 5.5-7.5x2 | 980 | 1650x1172x1520 |
| FFPD45 | 450 | 1300 | 5-13 | 7.5-11 | 630 | 1840x630x1520 |
| FFPD45x2 | 450 | 1300 | 10-26 | 7.5 -11x2 | 1260 | 1840x1260x1520 |
