The structure of a single roller mill mainly includes: roller mill frame, roller, feeding roller, cover, transmission mechanism, etc.
Detail
Dedicated to delivering comprehensive solutions for global grain processing, we supply a full range of equipment, covering every stage from raw grain intake to finished product packaging. Flour milling and corn processing equipment covers a wide range of machinery designed for efficient and high-quality production. Key products include Maize Roller Mills, Square Plansifters, Single Roller Mills, and advanced machines like Vibro Separators, Gravity Grading De-stoners, and Vertical Peeling Machines. Other essential equipment includes polishers, dampener systems, automatic weighing and packing machines, and high-pressure impulse filters. These systems ensure precision in wheat milling and maize processing, making them suitable for large-scale industrial applications with a focus on reliability and efficiency.
The structure of a single roller mill mainly includes: roller mill frame, roller, feeding roller, cover, transmission mechanism, etc.

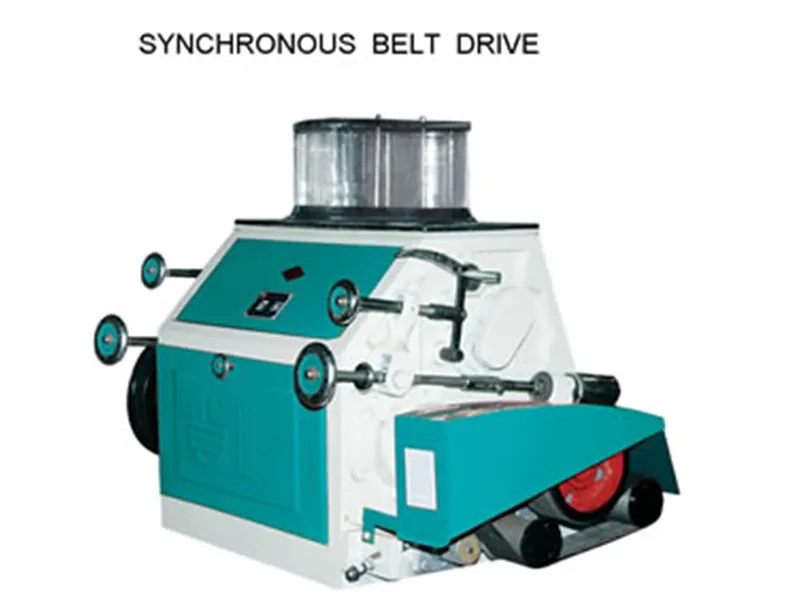

It uses a compound horizontal constant-speed toothed roller (or smooth roller) and uses gears, chains or synchronous belts to transmit the force on the fast roller to the slow roller to achieve unequal and relative rotation. The working method is to crush wheat by shearing, squeezing, grinding (or squeezing and grinding).
The single-type roller mill also has a grinding roller distance adjustment mechanism, a double feed roller feeding device, a feeding door adjustment device and a grinding roller transmission assembly. This single-type mill has a constant rolling distance during grinding, uniform and stable feeding, safe and convenient adjustment of the feeding door, synchronization of the feeding clutch and roller clutch, low grinding roller transmission noise, stable transmission, and good grinding process performance.
| Model | Transmission mode | Roller Dia.x length(mm) | Power(kw) | Weight | Dimension |
| (kg) | (LXWXH mm) | ||||
| 6F2560 | Synchronous belt drive | Ф250x600 | 7.5-15 | 1000 | 1140x780x670 |
| Chain drive | |||||
| 6F2550 | Synchronous belt drive | Ф250x500 | 7.5-11 | 900 | 1040x780x670 |
| Chain drive | |||||
| 6F2540 | Synchronous belt drive | ф250x400 | 7.5-11 | 800 | 1040x780x670 |
| Chain drive | |||||
| 6F2250 | Synchronous belt drive | Ф220x500 | 7.5-11 | 560 | 970x700x590 |
| Chain drive | 540 | ||||
| 6F2240 | Synchronous belt drive | Ф220x400 | 5.5-7.5 | 480 | 870x700x590 |
| Chain drive | 460 | ||||
| 6F2235 | Synchronous belt drive | ф220x350 | 5.5-7.5 | 440 | 820x700x590 |
| Chain drive | 420 |
